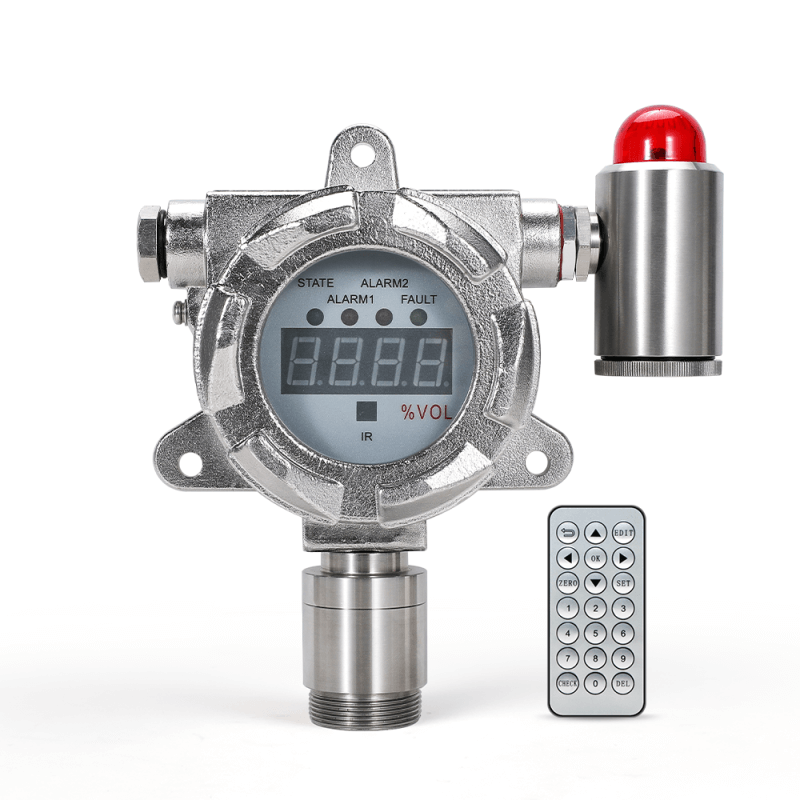

BH-60 Fixed Gas Detector (Stainless Steel)
BH-60 fixed gas detector (stainless steel) is a new type of gas detector developed and produced in combination with the company's many years of experience in gas detection.It is used to detect the concentration of flammable gases or other toxic and harmful gases in the air.When the concentration reaches or exceeds the preset alarm value. The controller will give an audible and visual alarm, promptly remind people take safety measures to prevent the occurrence of explosions and poisoning incidents, thus ensuring the safety of life and property.We provide gas detector OEM/ODM service.
- Free calibration
- Lifetime maintenance
- 1-year warranty
Feature
- Uses advanced micro-power technology sensors.
- 4-20mA standard signal output.
- High sensitivity
- Easy to operate and can perform on-site monitoring and alarm through simple settings.
Specifications
| Gas Detected | Ex, O2, CO, H2S, CH4, NH3, CL2, HCL, H2, NO, NO2, NOX, CH2O, O3, CO2, SO2, ETO, PH3, HCN, N2, HF, etc |
| Detection principle | catalytic or electrochemical or PID's or infrared principles |
| Sampling Method | wall, pipeline, flow-through (with the monitoring of the environment-related) |
| Resolution | 1%LEL, 0.1ppm, 1ppm, 0.01%vol |
| Precision | ＜5% F.S. |
| Response Time | ≦30S |
| Recovery Time | ≦10S |
| Repeatability | ≦±1% |
| Linearity error | ≦±1% |
| Zero shift | ≦±1% (FS / year) |
| Display Technology | Display high brightness LED display |
| Connection mode | G1 / 2 male proof hose pipe thread size Thread size M45 * 2mm |
| Working voltage | DC 24V |
| Working temperature | -20℃-55℃ |
| Explosion-Proof | Ex db IIC T6 Gb |
| Dimensions | 190×150×95mm |
| Cable requirement |
4-20mA, RVVP, 3-line, ≧1.5 mm2 Modbus, RVVP, 4-line, ≧1.5 mm2 |
